android端和Struts2服务器端通信,交互信息,参数采用JSON,使用了HttpClient与HttpPost类

首先是Struts端的程序,采用Struts2.1.6

1:web.xml的配置,主要是配置Struts2的filter

<filter>
    <filter-name>struts2</filter-name>
    <filter-class>org.apache.struts2.dispatcher.ng.filter.StrutsPrepareAndExecuteFilter</filter-class>
</filter>

<filter-mapping>
    <filter-name>struts2</filter-name>
    <url-pattern>/*</url-pattern>
</filter-mapping>

2:struts.xml的内容:

    <package name="testjson" extends="json-default">
        <action name="getjson" class="com.capinfotech.json.JSONAction" method="json">
           <result type="json" />
        </action>
    </package>

3:JSONAciton的内容为:

package com.capinfotech.json;

import java.io.IOException;
import java.util.HashMap;
import java.util.Map;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import net.sf.json.JSONArray;
import net.sf.json.JSONObject;

import org.apache.struts2.interceptor.ServletRequestAware;
import org.apache.struts2.interceptor.ServletResponseAware;

import com.opensymphony.xwork2.ActionSupport;

public class JSONAction extends ActionSupport implements ServletRequestAware, ServletResponseAware{

    private static final long serialVersionUID = -989477296829078690L;

    private HttpServletRequest request;
    private HttpServletResponse response;
    private String format;

    public String getFormat() {
        return format;
    }

    public void setFormat(String format) {
        this.format = format;
    }

    public void setServletRequest(HttpServletRequest request) {
        this.request = request;
    }

    public void setServletResponse(HttpServletResponse response) {
        this.response = response;
    }

    public void json() {
                JSONArray jsonArray = new JSONArray();

                JSONObject jsonObject = new JSONObject();
                jsonObject.put("id", 1);
                jsonObject.put("title", "哈利波特");
                jsonObject.put("timelength", 89);

                JSONObject jsonObject1 = new JSONObject();
                jsonObject1.put("id", 2);
                jsonObject1.put("title", "速度与激情");
                jsonObject1.put("timelength", 120);

                JSONObject jsonObject2 = new JSONObject();
                jsonObject2.put("id", 3);
                jsonObject2.put("title", "变形金刚3");
                jsonObject2.put("timelength", 100);

                jsonArray.add(0, jsonObject);
                jsonArray.add(1, jsonObject1);
                jsonArray.add(2, jsonObject2);

                try {
                    this.response.setCharacterEncoding("UTF-8");
                    this.response.getWriter().write(jsonArray.toString());
                } catch (IOException e) {
                    e.printStackTrace();
                }
        }
}

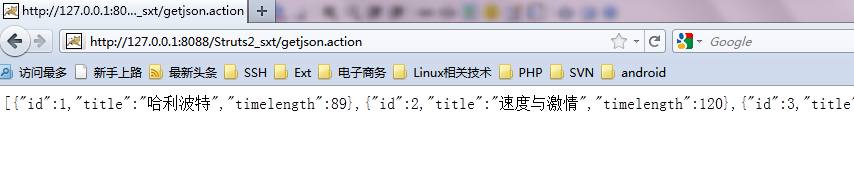

4:运行效果为如下图:

5:运行注意事项,当Struts2中使用JSON时,一定要添加够JSON使用的包,否则会出错,要添加的包如下:

ezmorph-1.0.6.jar
commons-lang 2.4
commons-beanutils 1.7.0
commons-collections 3.2
commons-logging 1.1.1

Android端的程序和配置

1:androidmanifest.xml的内容为:

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
      package="cn.capinfotech.json"
      android:versionCode="1"
      android:versionName="1.0">
    <application android:icon="@drawable/icon" android:label="@string/app_name">
        <activity android:name=".MainActivity"
                  android:label="@string/app_name">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />
                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>

    </application>
    <uses-sdk android:minSdkVersion="8" />
    <uses-permission android:name="android.permission.INTERNET" />

</manifest>

2:main.xml的内容主要是定义了ListView用来显示最新的电影咨询

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    >

<ListView
    android:id="@+id/videos"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
   />
</LinearLayout>

3:item.xml的内容,主要用来定义ListView里每个元素的显示方式

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
  xmlns:android="http://schemas.android.com/apk/res/android"
  android:layout_width="fill_parent"
  android:layout_height="fill_parent">
<TextView
  android:layout_width="250dip"
  android:layout_height="wrap_content"
  android:id="@+id/title"
/>

<TextView
  android:layout_width="fill_parent"
  android:layout_height="wrap_content"
  android:id="@+id/timelength"
/>

</LinearLayout>

4:定义了一个实体类Video

package com.capinfotech.model;

public class Video {

    private Integer id;
    private String name;
    private Integer time;

    public Video() {

    }

    public Video(Integer id, String name, Integer time) {
        super();
        this.id = id;
        this.name = name;
        this.time = time;
    }

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public Integer getTime() {
        return time;
    }

    public void setTime(Integer time) {
        this.time = time;
    }

}

5:MainActivity的内容

package cn.capinfotech.json;

import java.net.URI;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;

import org.apache.http.HttpEntity;
import org.apache.http.HttpResponse;
import org.apache.http.client.HttpClient;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.impl.client.DefaultHttpClient;
import org.apache.http.util.EntityUtils;
import org.json.JSONArray;
import org.json.JSONObject;

import android.app.Activity;
import android.os.Bundle;
import android.util.Log;
import android.widget.ListView;
import android.widget.SimpleAdapter;
import android.widget.Toast;

public class MainActivity extends Activity {
     private static final String TAG = "MainActivity";
     private List<HashMap<String, Object>> videos = null;
     private HashMap<String, Object> video = null;

     private ListView listView = null;
     private static String url = "http://10.0.2.2:8088/Struts2_sxt/getjson.action";

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);

        listView = (ListView)findViewById(R.id.videos);
        getPDAServerData(url);

    }

    private void getPDAServerData(String url) {
            HttpClient client = new DefaultHttpClient();
            //提拱默认的HttpClient实现
            HttpPost request;
            try {
                request = new HttpPost(new URI(url));
                HttpResponse response = client.execute(request);
                // 判断请求是否成功
                if (response.getStatusLine().getStatusCode() == 200) { //200表示请求成功
                    HttpEntity entity = response.getEntity();
                    if (entity != null) {
                        String out = EntityUtils.toString(entity, "UTF-8");
                        Log.i(TAG, out);

                        JSONArray jsonArray = new JSONArray(out);

                        videos = new ArrayList<HashMap<String, Object>>();
                        for(int i = 0; i<jsonArray.length(); i++) {
                            JSONObject jsonObject = (JSONObject) jsonArray.get(i);
                            int id = jsonObject.getInt("id");
                            String name = jsonObject.getString("title");
                            int timelength = jsonObject.getInt("timelength");

                            video = new HashMap<String, Object>();
                            video.put("id", id);
                            video.put("name", name);
                            video.put("timelength", "时长为:" + timelength);

                            videos.add(video);
                        }

                        SimpleAdapter adapter = new SimpleAdapter(this, videos, R.layout.item,
                                                               new String[]{"name", "timelength"},
                                                               new int[]{R.id.title, R.id.timelength}
                                                 );
                        listView.setAdapter(adapter);

                    }
                }
            } catch(Exception e) {
                e.printStackTrace();
                Log.e(TAG, e.toString());
                Toast.makeText(MainActivity.this, "获取数据失败", Toast.LENGTH_LONG).show();
            }
    }
}

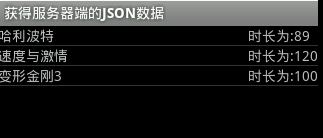

6:程序界面效果图
